Packard Bell Florida M/Board

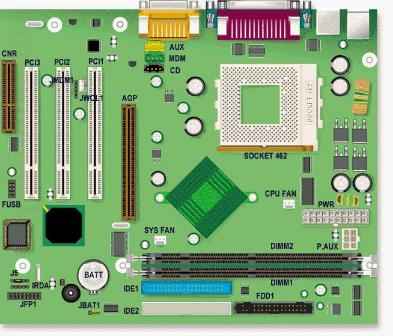

florida board diagram

The Florida motherboard is almost identical to the Halley motherboard. Both are described as MSI-6340 by the manufacturer MSI. The difference is in the chipsets: the Florida uses the VIA Apollo KT133 chipset, and the Halley has the VIA Apollo KM133 chipset. This chipset has the S3 ProSavage 4 video chipset integrated, giving the Halley integrated video as well as an AGP-port for AGP video-cards. The Florida motherboard only has the AGP-port and no integrated video.

Specification

  • Audio: Integrated on the VIA Technologies' VT1611A 18-audio audio codec
  • Bios: AMI
  • Chipset: VIA Apollo KT133 (VT8363 552 BGA system controller, VT82C686A PCI to ISA bridge)
  • CPU Support :
    • Socket 462 for AMD PGA Duron/Athlon processor.
    • 100 MHz Host bus speed (uses dual clocking to obtain 200 MHz FSB)
    • Supports 200 MHz FSB Duron CPU at 850 MHz maximum
    • Supports 200 MHz FSB Athlon CPU at 1100 MHz maximum
    • Note: above CPU's are only supported with the latest BIOS version.
  • Form Factor : ATX 24.4 cm. × 20.0 cm Form Factor
  • RAM :
    • 4 memory banks (2 slots) using three 168-pin unbuffered DIMM.
    • Single or double sided DIMMS with gold-plated contacts with clock specifications of 66, 100 or 133 MHz.

      CPU Bus FrequencyMemory Frequency Supported
      100 MHz66, 100 or 133 MHz
      200 MHz100 or 133 MHz

    • Supports a maximum memory size of 1 GB
    • 512 (128-bit technology) or 256 MB (64-bit technology) registered DIMMs
    • 1 GB unregistered DIMMS (256-bit technology)
    • 3.3 V SDRAM DIMMs.
    • ECC memory checking is not supported

Jumpers

JumperConfiguration
JBAT1 - Clear CMOS jumper1-2: Normal operation (default)
2-3: Clear current BIOS
J5 - Bios Configuration Access 1-2: Normal operation (default)
2-3: Access BIOS maintenance panel
None: BIOS Recovery
