Packard Bell Discovery M/Board

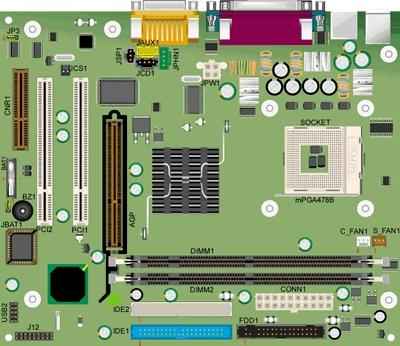

discovery board diagram

Specification

  • Audio: SigmaTel technologies SigmaTel STAC9756T audio codec
  • Bios: AMI
  • Chipset: Intel 845
  • CPU Support :
    • Socket mPGA 478B
    • Supports Intel P4 FC-PGA2 (Flip-chip Pin Grid Array), 800 MHz to 2.4 GHz.
    • Warning: Not all the above processors have been qualified.
    • 100 MHz (x4 = 400 MHz) data bus support (Quad-Bumped technology).
  • Form Factor : Flex-ATX 22.9 x 19.2 cm Form Factor
  • I/O Controller : Winbond W83627HF-AW
  • RAM :
    • Supports 2 memory slots.
    • Serial Presence Detect (SPD) support.
    • Supports a maximum memory size of 1 GB (using 2 x 512 MB memory modules)
    • Warning: Not all memory configuration qualified.
    • Support only 3.3 V DIMM DRAM configurations.
    • ECC DIMM support.
    • 133 MHz SDRAM interface.
    • STR power management support via self refresh mode using CKE.

Jumpers

JumperConfiguration
JBAT1 - Clear CMOS jumper1-2: Normal operation (default)
2-3: Clear current BIOS default settings
JP3 - Safe Mode/Recovery/Normal selection 1-2: Normal (default)
2-3: Safe Mode (restores safe values / loads BIOS setup in maint. mode)
Open: Recovery (used only to flash a corrupted BIOS)
