Packard Bell 1020 M/Board

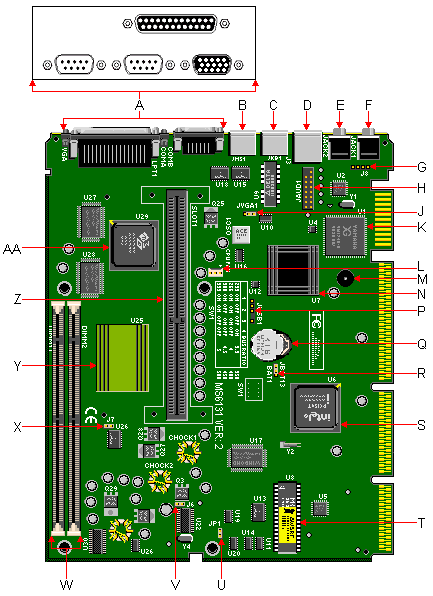

1020 board diagram

Item    DescriptionItem    Description
AParallel, Serial & VGA PortsPRear USB Port Header (JUSB1)
BPS/2 Mouse PortQBattery
CPS/2 Keyboard PortRCMOS Clear Jumper (JBAT1)
DRJ-45 Network Cable JackSIntel 82371EB PIIX4E Chipset
EMicrophone JackTAward Flash BIOS
FSpeaker JackUPower-On Mode Jumper (JP1)
G Aux Line-In Connector (J8) VCPU Bus Frequency Selection Jumper (JK1/J6)
HMIDI/Game Port Connector Header (JAUD1)    WDIMM Sockets
J Onboard VGA Jumper (JVGA1) XAGP Bus Frequency Selection Jumper (JK2/J7)
KYamaha YMF740C-V Audio ControllerYIntel FW82443BX AGP Controller Chipset
LCPU Fan Power ConnectorZCPU Socket (SLOT1)
MPiezo BuzzerAAATI 3D RagePro/Rage IIC
NIntel 82558 10/100M Ethernet Controller

Specification

  • Audio : Yamaha YMF740 Audio Controller
  • Battery : CR2032 Lithium 3V Socketed
  • BIOS : IIntel E28F002BXT80 2 MBit Flash EPROM. System BIOS by Award
  • Bus : PCI/ISA based system bus. 100MHz maximum bus speed
  • Cache : 32K level 1 cache. 0, 128, 256 or 512KB level 2 cache in the Single Edge Contact cartridge (Not upgradeable).
  • Chipset : Intel 82443BX PCI AGP Controller (PAC). Intel 82371EB PCI chipset (PllX4E)
  • CPU : Supports the following processors:
    • 66MHz Front-side Bus:
      • Celeron 300A/128K cache
      • Celeron 333A/128K cache
      • Celeron 366/128K cache
    • 100MHz Front-side Bus:
      • Pentium II 350/512K cache
      • Pentium II 400/512K cache
      • Pentium II 450/512K cache
      • Pentium III 450/512K cache
      • Pentium III 500/512K cache
  • Interfaces :
    • 2 DB-9 Serial ports
    • 1 DB-25 Parallel port
    • 1 DB-15 VGA port
    • 1 PS/2 keyboard port
    • 1 PS/2 mouse port
    • 1 RJ-45 LAN connector
    • 2 Stereo mini-jacks for Line In & Line Out
  • Network : Intel 82558 10/100M Ethernet Chipset
  • RAM : 2 168-pin DIMM sockets, upgradeable to 512MB total SDRAM
  • Video : ATI 3D Rage Pro AGP 2X Video Chipset
  • Video RAM : 2 or 4 MB SGRAM onboard (Non-upgradeable).

Jumpers

CMOS Clear Jumper (JBAT1)

JumperPinsDescription
JBAT11-2
2-3
Normal/Save CMOS settings
Clear CMOS settings

Caution : When clearing the CMOS settings, the power cord must be unplugged (since the standby power for the PIIX4E chipset comes from the power supply) and let the system rest for five seconds for the power to clear before returning the jumper to the Normal position.

Onboard VGA Jumper (JVGA1)

JumperPinsDescription
JVGA11-2
2-3
Enable onboard VGA
Disable onboard VGA

Power-On Mode Jumper (JP1)

JumperPinsDescription
JP11-2
None
Boot up when power button is pressed.
Immediate boot up when power cable is connected.

CPU Bus Frequency Selection Jumper (JK1/J6)

JumperPinsDescription
JK1/J6Closed
Open
Automatically detect 66MHz and 100MHz CPU Bus Frequency.
Virtually set 66MHz CPU Bus Frequency into 100MHz.

AGP Bus Frequency Selection Jumper (JK2/J7)

JumperPinsDescription
JK2/J7Closed
Open
66MHz AGP Bus Frequency
AGP Bus Frequency same as CPU Bus Frequency

Upgrades

  • Cache : Non-Upgradeable.

  • CPU : Supports the following processors:
    • 66MHz Front-side Bus:
      • Celeron 300A/128K cache
      • Celeron 333A/128K cache
      • Celeron 366/128K cache
    • 100MHz Front-side Bus:
      • Pentium II 350/512K cache
      • Pentium II 400/512K cache
      • Pentium II 450/512K cache
      • Pentium III 450/512K cache
      • Pentium III 500/512K cache
    • Single Edge Contact (SEC) cartridge. Uses the SLOT1 CPU socket. Not keyboard switchable. Disable cache to slow down the system.

  • RAM : Maximum on Motherboard: 256MB. Uses 8/16/32/64/128/256 MB DIMMs, 60ns or faster EDO SDRAM DIMMs. Supports only non-parity DIMM modules.
    • The 168-pin DIMM sockets will support PC66/PC100 unbuffered 3.3V 1MBx64 (8MB), 2MBx64 (16MB), 4MBx64 (32MB), and 8MBx64 (64MB) and 16MBx64 (128MB) SDRAM DIMMs.
    • Bank 1 will be populated as the default from the factory.
    • No configuration jumpers: BIOS detects memory size, and memory type.
    • This motherboard will not accept 36-bit DIMM modules (parity).

  • Video RAM: Non-Upgradeable.
